2D fiber laser processing machine

Lz 6025A

High-quality, highly accurate and stable processing on a larger table increases overall production efficiency. Expanded power availability also enhances capabilities for processing thicker materials and larger workpieces.

Equipped with Mazak SmoothCUT fiber oscillator 12.0 kW / 20.0kW for high-quality and stable cutting for wide range of material
Features dedicated CNC touch panel system for Lz series with additional screen for ease of operation
Two monitoring cameras allow real-time progress checks during processing and set up

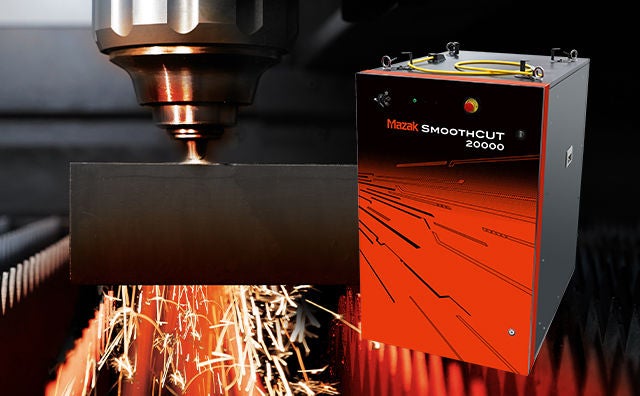

Mazak SmoothCUT Oscillator

Mazak SmoothCUT Fiber Laser Oscillator delivers consistent, reliable beam quality suitable for stable high-quality.

GRAND CUT

Developed by Mazak’s extensive high-power cutting experience with GRAND CUT technology ensures superior cutting accuracy and edge quality.

Dual pallet changer

The dual pallet changer minimizes machine set up time and maximizes productivity and efficiency by allowing the operator to load/unload a pallet while cutting continues on the other pallet.

Machine monitoring camera

Two standard machine monitoring cameras, one in the machine and the other on pallet changer side, allow operators to clearly view the cutting process inside of the machine and easily check 2PC side instead of walking around the machine.

Dedicated CNC System

Dedicated CNC system for Lz series ensures intuitive useability and efficient workflow that is highly productive.
Optional CAD/CAM integration simplifies the entire process from design through the cutting program creation, reducing setup time and ensuring consistent high-quality cutting.

		Lz 6025A
Laser oscillator		Mazak SmoothCUT
Laser power		12.0 kW, 20.0 kW
Max. cutting area		100" × 240"
Stroke	X-axis	102"
	Y-axis	242"
	Z-axis	13"
CNC system	Monitor	21.5" color LCD
Machine size	Machine width × length	146" × 598"
	Machine height	113"
	Machine weight	49119 lb (20.0 kW)
