2D Fiber Laser Processing Machine

Lz series

Precision laser prosessing solutions

High-quality, highly accurate and stable processing deliver dependable production for thin and medium-thick plates with compact floor space requirement

  • Equipped with Mazak SmoothCUT fiber oscillator 6.0 kW / 12.0 kW / 20.0 kW for high-quality and stable cutting for wide range of material
  • Features dedicated CNC touch panel system for Lz series with additional screen for ease of operation
  • Two monitoring cameras allow real-time progress checks during processing and set up

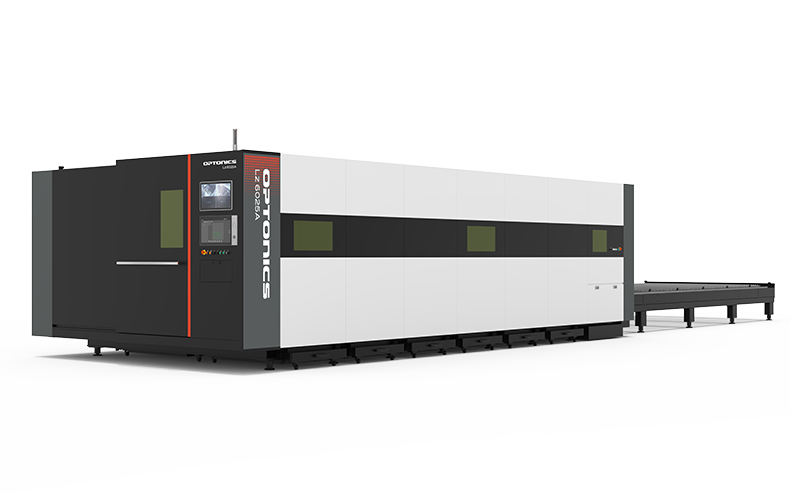

OPTONICS Lz series 2D fiber laser cutting machine with dual pallet changer

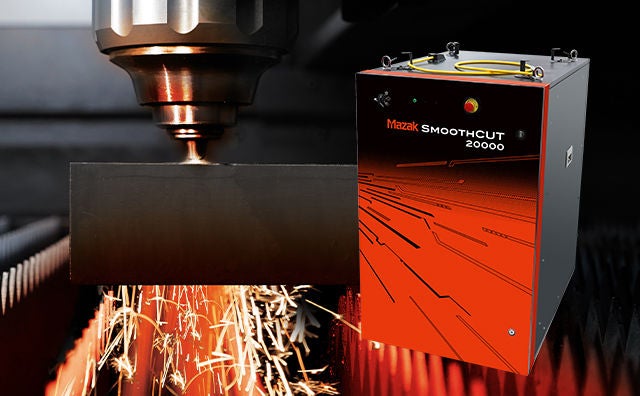

Mazak SmoothCUT oscillator

Mazak SmoothCUT Fiber Laser Oscillator delivers consistent, reliable beam quality suitable for stable high-quality.

Mazak SmoothCUT fiber laser oscillator for stable high-quality cutting

GRAND CUT

Developed by Mazak’s extensive high-power cutting experience with GRAND CUT technology ensures superior cutting accuracy and edge quality.

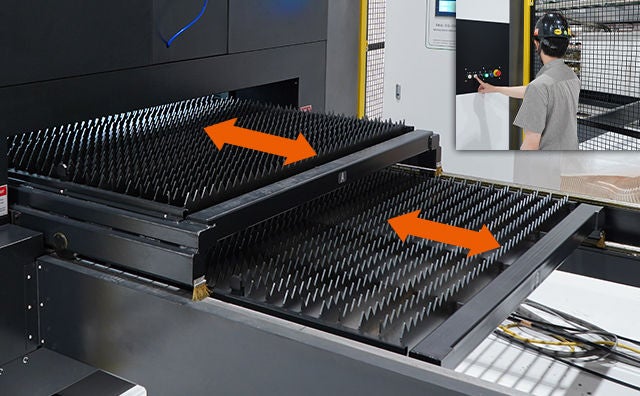

Dual pallet changer

The dual pallet changer minimizes machine set up time and maximizes productivity and efficiency by allowing the operator to load/unload a pallet while cutting continues on the other pallet.

Dual pallet changer enabling continuous laser cutting production

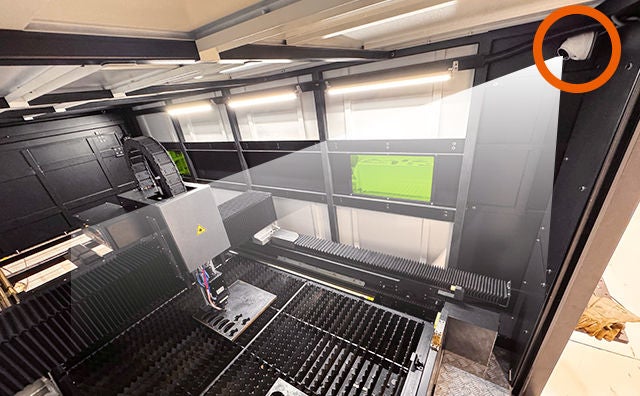

Machine monitoring camera

Two standard machine monitoring cameras, one in the machine and the other on pallet changer side, allow operators to clearly view the cutting process inside of the machine and easily check 2PC side instead of walking around the machine.

Machine monitoring camera showing real-time cutting process visibility

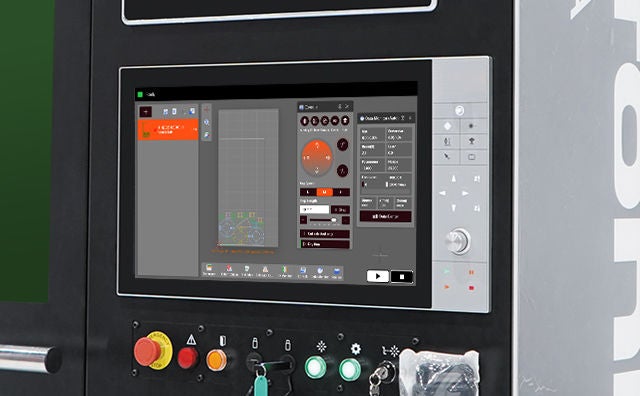

SmoothEDGE

CNC System SmoothEDGE for Lz series ensures intuitive useability and efficient workflow that is highly productive.
Optional CAD/CAM integration simplifies the entire process from design through the cutting program creation, reducing setup time and ensuring consistent high-quality cutting.

SmoothEDGE CNC system with touchscreen processing controls

Machine Specifications

 Lz 3015ALz 6025A
Laser oscillatorMazak SmoothCUTMazak SmoothCUT
Laser power6.0 kW, 12.0 kW12.0 kW, 20.0 kW
Max. cutting area60" × 120"100" × 240"
StrokeX-axis61"101"
Y-axis124"242"
Z-axis13"13"
CNC systemMonitor21.5" color LCD21.5" color LCD
Machine sizeMachine width × length115" × 354"146" × 598"
Machine height112"113"
Machine weight22531 lb (6.0 kW)49119 lb (20.0 kW)
