High Precision Press Brakes

XB series

Precision Bending Solutions

The XB series delivers exceptional bending accuracy, high productivity and energy-efficient performance. Advanced control technology ensures stable, high-quality bending, while the high-response drive system maximises productivity across a wide range of applications. From high-mix, low-volume production to mass production, the XB series meets the diverse requirements of the sheet metal fabrication industry.

Deliver bends with confidence, achieving exceptional accuracy and repeatability across both complex and high-volume applications.
Produce more parts in less time with high-speed performance designed to maximise productivity and profitability.
Cut energy consumption while maintaining outstanding performance, helping reduce costs and support sustainable manufacturing goals.

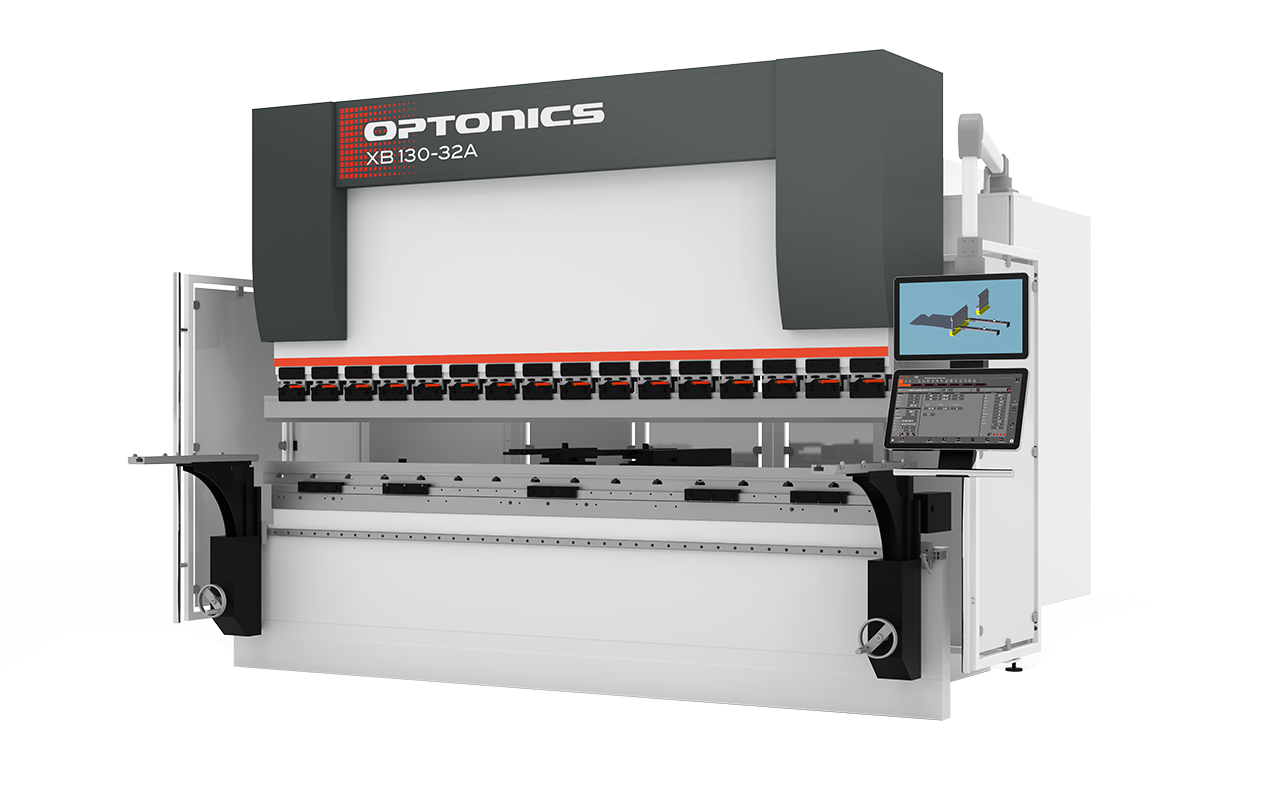

XB series hybrid press brake with multi-axis bend control

High Productivity – Hybrid Drive and Bend Speeds

Built for handling both mass production and small batches. Independent dual servo motors and pumps on Y1 and Y2 axis deliver instant power and rapid ram acceleration reducing cycle times with high-speed bending performance up to 15 mm/sec.

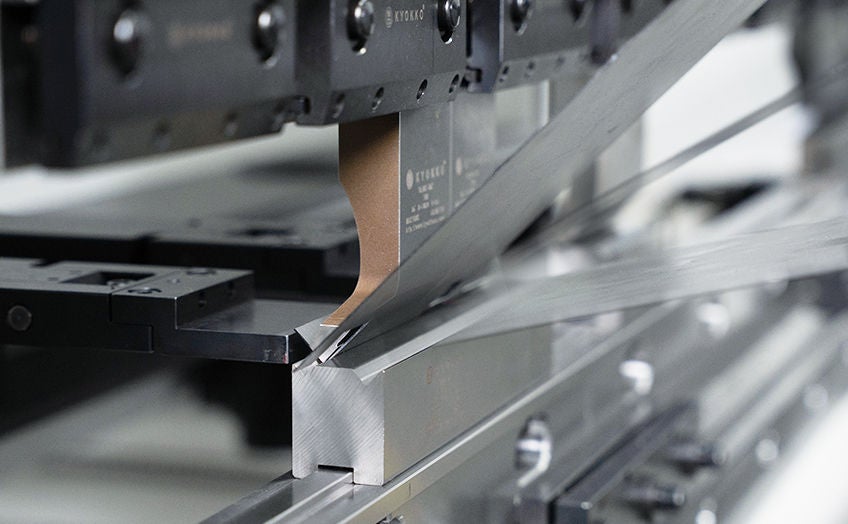

Hybrid drive technology delivering high-speed and energy-efficient bending

GRAND CUT

Developed by Mazak’s extensive high-power cutting experience, GRAND CUT technology ensures superior cutting accuracy and edge quality.

High accuracy – Crowning Systems as standard

For large and long workpieces, maintaining consistent bend angles is critical. Highly accurate and repeatable bending performance is achieved via patented distortion compensation device, precise linear measuring scales and CNC-controlled automatic crowning systems as standard.

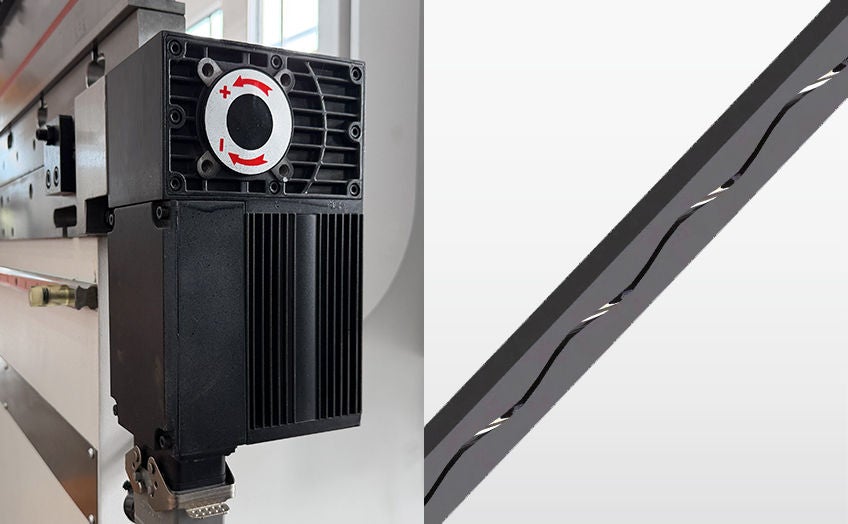

Automatic crowning system ensuring accurate and repeatable bend angles

Versatile – Gauging options

Achieve versatile production with high-speed, servo-driven backgauge systems that provide precise sheet positioning and exceptional repeatability. CNC-controlled multi-axis configurations are available from a standard 4-axis setup to advanced 6-axis systems, enabling efficient processing of even the most complex bending requirements.

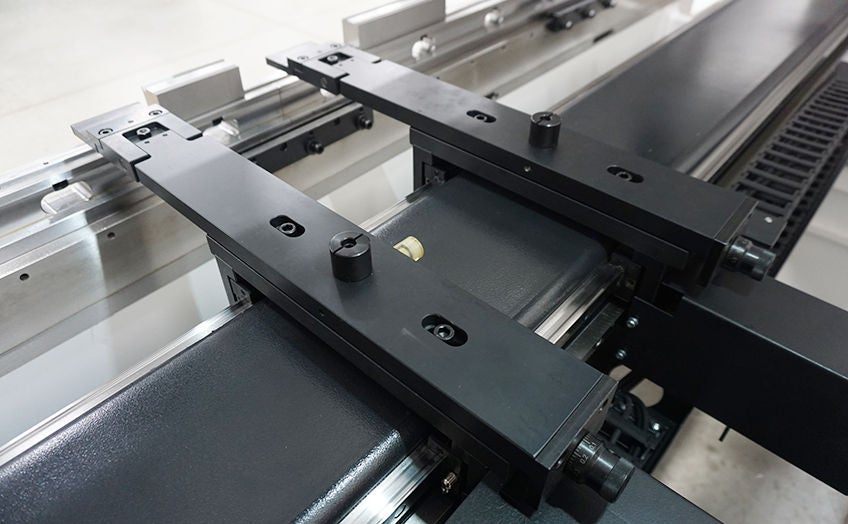

Servo-driven backgauge system for precise sheet positioning

Flexible tool clamping – Multiple options

A comprehensive range of tool clamping systems are available to meet individual production requirements. Euro Style (A) or Wila Style (B) tool clamping system options streamline bending operations by drastically reducing set-up times, ensuring precise and repeatable tool alignment. Manual and hydraulic configurations offer further flexibility and additional production efficiency benefits.

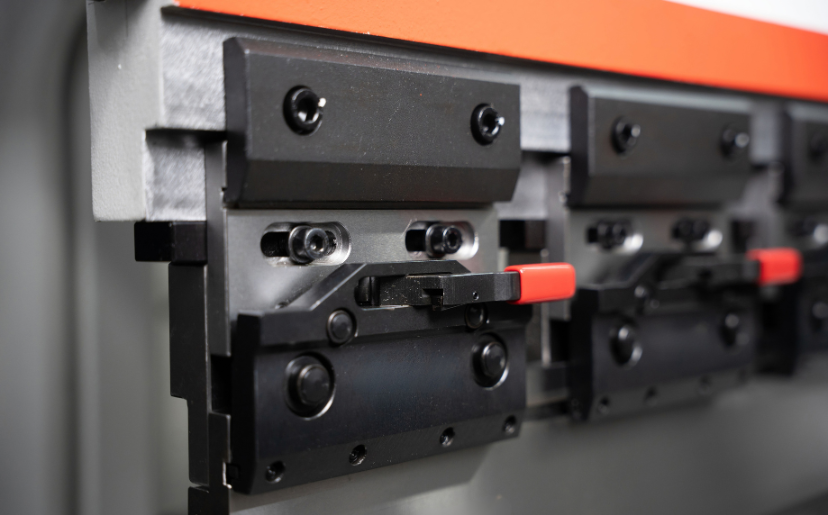

Euro and Wila tool clamping options for faster setup changes

SmoothBEND NC – Ease of operation

Equipped with the OPTONICS SmoothBEND NC control, featuring a cutting-edge dual touchscreen user interface. Intuitive and easy to operate, it provides instant access to all bending programme data and graphical information at a glance

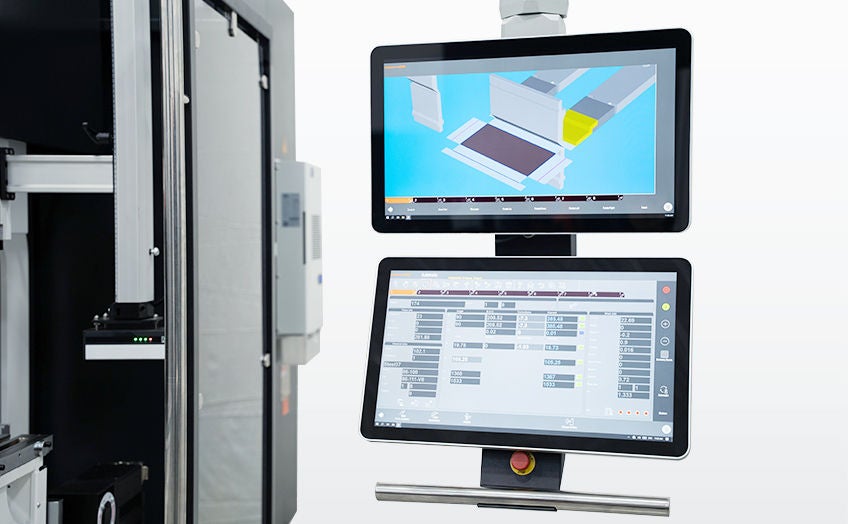

SmoothBend NC interface providing intuitive press brake operation

CAD/CAM software - Highly productive bending

Optional offline software offers fast and automatic programming. Designed for high mix- small batch production, the software delivers intelligent 3D unfolding and minimises machine idle time. Batch processing of multiple parts significantly reduces tool set-ups and significantly increasing productivity.

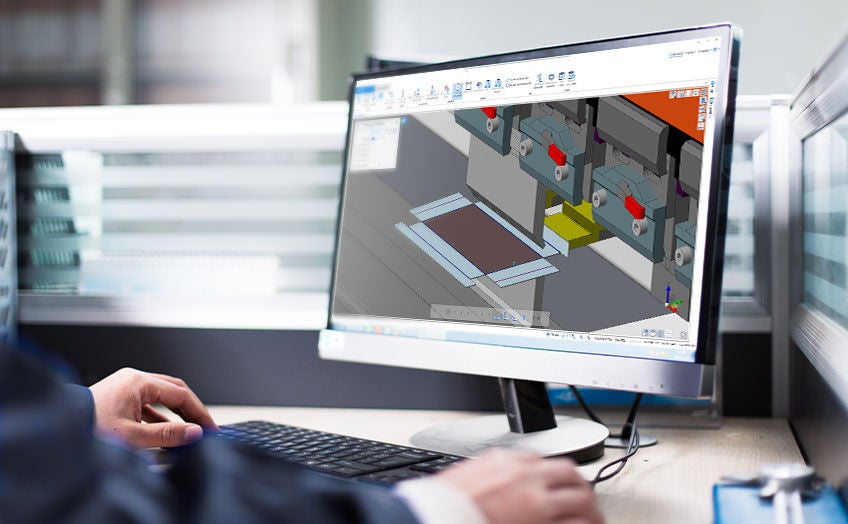

SMART SYSTEM software enabling automated offline bend programming

Machine Specifications

		A: Euro Style			B: Wila Style
		XB 130-32A	XB 170-32A	XB 250-41A	XB 130-32B	XB 170-32B	XB 250-41B
Press capacity		1300 kN	1700 kN	2500 kN	1300 kN	1700 kN	2500 kN
Max. bending length		3200 mm	3200 mm	4100 mm	3200 mm	3200 mm	4100 mm
Distance between uprights		2700 mm	2700 mm	3600 mm	2700 mm	2700 mm	3600 mm
Throat depth		400 mm	400 mm	400 mm	400 mm	400 mm	400 mm
Cylinder stroke (Y-axis)		225 mm	225 mm	250 mm	400 mm	400 mm	400 mm
Opening height		500 mm	500 mm	525 mm	700 mm	700 mm	700 mm
X-axis stroke		600 mm	600 mm	600 mm	600 mm	600 mm	600 mm
R-axis stroke		200 mm	200 mm	200 mm	200 mm	200 mm	200 mm
Max speed	Approach speed	250 mm/s	250 mm/s	130 mm/s	250 mm/s	250 mm/s	130 mm/s
	Bend speed	up to 15 mm/s	up to 15 mm/s	up to 12 mm/s	up to 15 mm/s	up to 15 mm/s	up to 12 mm/s
	Return speed	220 mm/s	200 mm/s	130 mm/s	220 mm/s	200 mm/s	130 mm/s
Machine dimensions	Length	4070 mm	4090 mm	5010 mm	4070 mm	4090 mm	5010 mm
	Width	2670 mm	2670 mm	2790 mm	2670 mm	2670 mm	2790 mm
	Height	2720 mm	2720 mm	2985 mm	3265 mm	3325 mm	3415 mm
Machine weight		9800 kg	10600 kg	16800 kg	11000 kg	12900 kg	18700 kg

		A: Euro Tool Clamping
		XB130-32A	XB170-32A	XB250-41A
Press capacity		1300 kN	1700 kN	2500 kN
Max. bending length		3200 mm	3200 mm	4100 mm
Distance between uprights		2700 mm	2700 mm	3600 mm
Throat depth		400 mm	400 mm	400 mm
Cylinder stroke (Y-axis)		225 mm	225 mm	250 mm
Opening height		500 mm	500 mm	525 mm
Main power		2 × 7.5 kW	2 × 7.5 kW	2 × 9 kW
Oil volume		2 × 70 L	2 × 70 L	2 × 120 L
X-axis stroke		600 mm	600 mm	600 mm
R-axis stroke		200 mm	200 mm	200 mm
Max. speed	Approach speed	250 mm/s	250 mm/s	130 mm/s
	Bend speed	up to 15 mm/s	up to 15 mm/s	up to 12 mm/s
	Return speed	220 mm/s	200 mm/s	130 mm/s
Machine dimensions	Length	4070 mm	4090 mm	5010 mm
	Width	2020 mm	2010 mm	2120 mm
	Height	2720 mm	2720 mm	2985 mm
Machine weight		9800 kg	10600 kg	16800 kg
